Capacitive sensing redefined for industrial automation
Turck's latest capacitive sensors from the BC/UC generation set a new benchmark for material detection, level monitoring, and object recognition. Built for rugged environments, these sensors combine digital intelligence with mechanical flexibility—supporting both flush and non-flush mounting in a single device.
Compact, Capable, and Connected

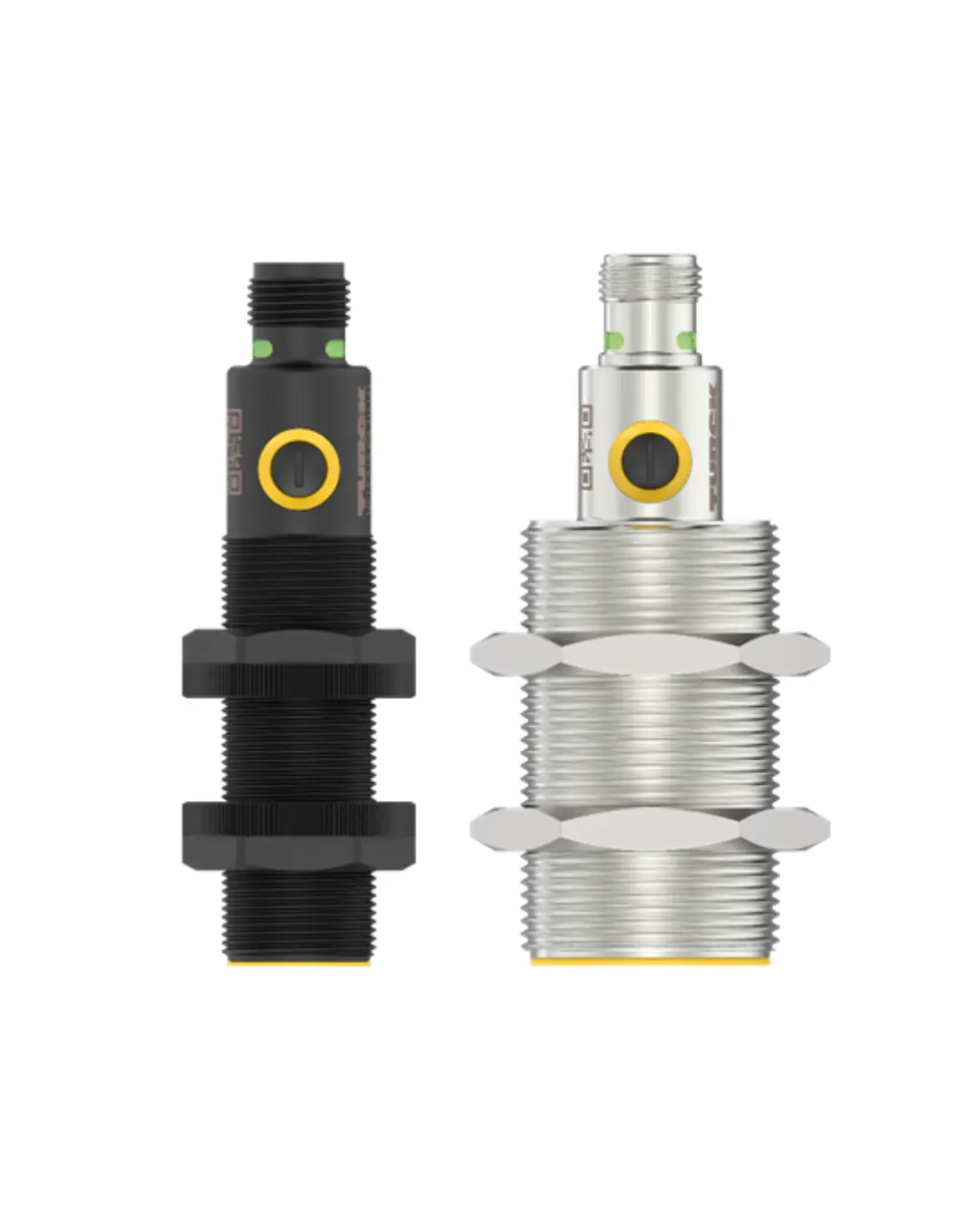

Designed in M18 and M30 formats with plastic or metal housings, this new sensor family supports applications across various industries—especially in detecting granular media like wood pellets, plastic granulates, or sand, as well as adhesive or sticky liquids.
Key connectivity features include:
- IO-Link with full TAS integration – enabling seamless sensor parameterization, remote diagnostics, and process transparency.
- Digital potentiometer with optical feedback – intuitive setpoint teaching using a multicolor LED with 360° visibility.
- Flexible installation – sensors adapt to flush and non-flush mounting without hardware changes.
Sensor Sizes
M18 and M30Housing Options
Plastic & metalInstallation in one device
Flush & non-flush
Setpoint Teaching
Via digital potentiometerSwitching Distance
8-25 mmIO-Link Support
Full TAS integrationLED Feedback
360° multicolor Protection Rating
IP67Need help selecting the right model?
Tell us about your application — our team will help configure the best solution for your needs.
QM30VT3 Series models

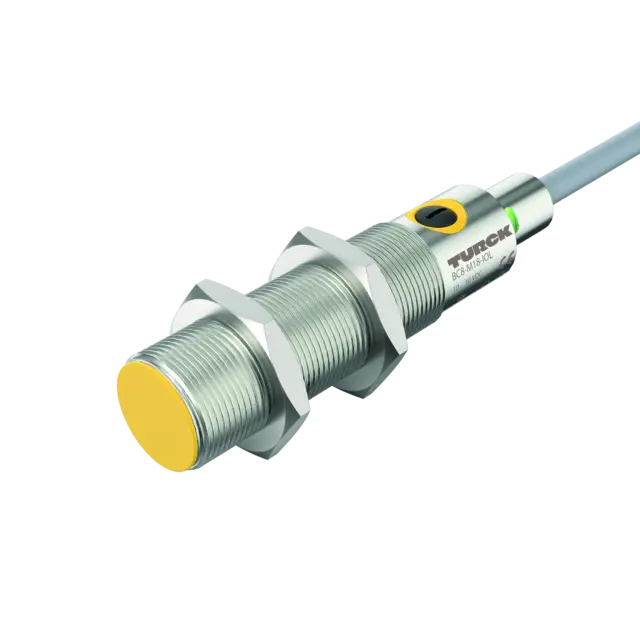

BC8-M18-IOL
105.00 €
- Rated Switching Distance (Flush / Non-Flush): 8mm/8mm
- Switching Frequency: ≤100 Hz
- Housing: M18 x 1, metal
- Communication: IO-Link
- Output: 4-wire, NO/NC programmable, PNP/NPN
- Supply: 10…30 VDC

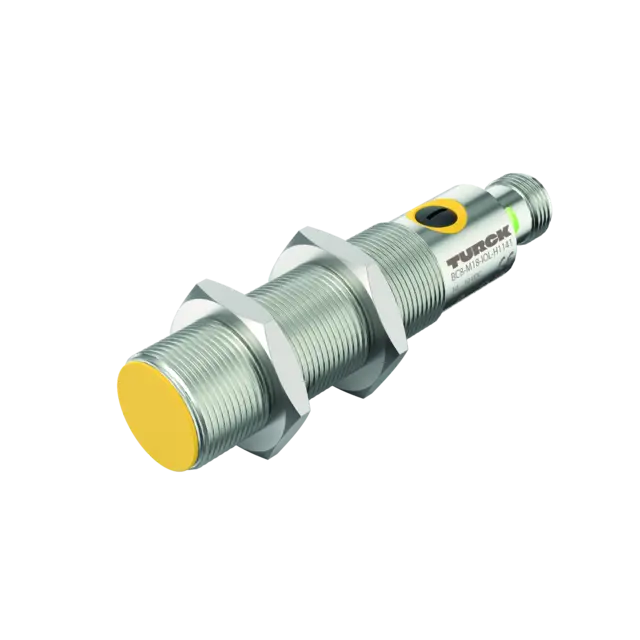

BC8-M18-IOL-H1141
105.00 €
- Rated Switching Distance (Flush / Non-Flush): 8mm/8mm
- Switching Frequency: ≤100 Hz
- Housing: M18 x 1, metal
- Communication: IO-Link
- Output: 4-wire, NO/NC programmable, PNP/NPN
- Supply: 10…30 VDC

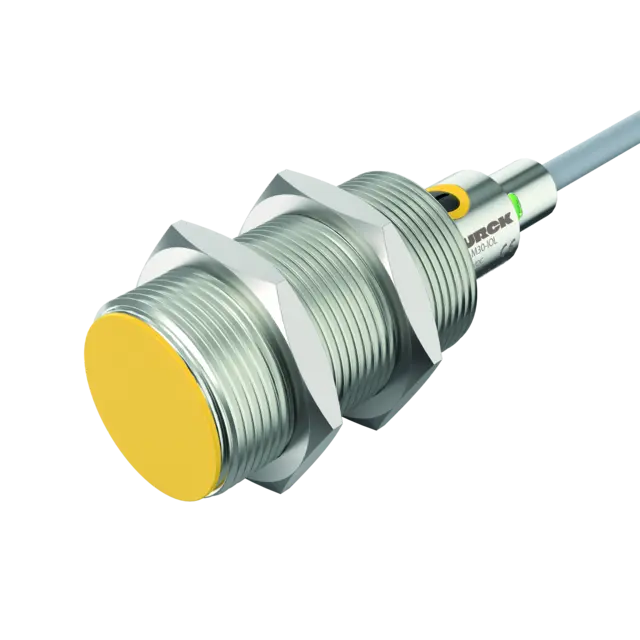

BC15-M30-IOL
109.00 €
- Rated Switching Distance (Flush / Non-Flush): 15mm/15mm
- Switching Frequency: ≤100 Hz
- Housing: M30 x 1.5, metal
- Communication: IO-Link
- Output: 4-wire, NO/NC programmable, PNP/NPN
- Supply: 10…30 VDC
BC15-M30-IOL-H1141
109.00 €
- Rated Switching Distance (Flush / Non-Flush): 15mm/15mm
- Switching Frequency: ≤100 Hz
- Housing: M30 x 1.5, metal
- Communication: IO-Link
- Output: 4-wire, NO/NC programmable, PNP/NPN
- Supply: 10…30 VDC

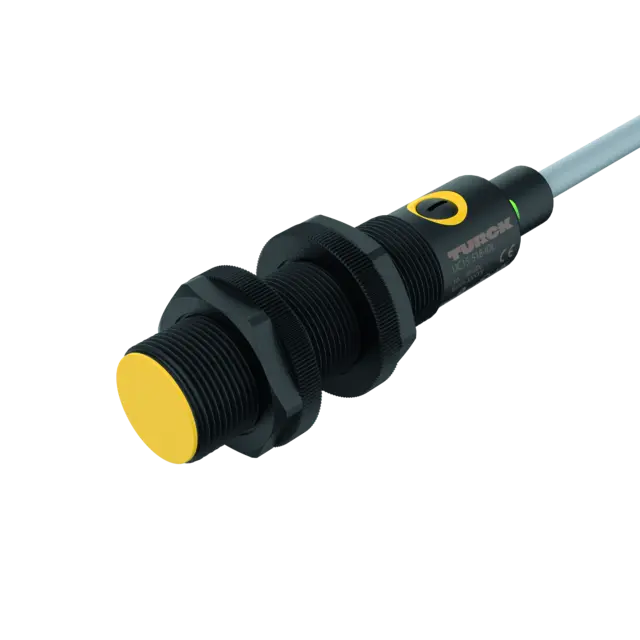

UC15-S18-IOL
95.00 €
- Rated Switching Distance (Flush / Non-Flush): 10mm/15mm
- Switching Frequency: ≤100 Hz
- Housing: M18 x 1, plastic
- Communication: IO-Link
- Output: 4-wire, NO/NC programmable, PNP/NPN
- Supply: 10…30 VDC

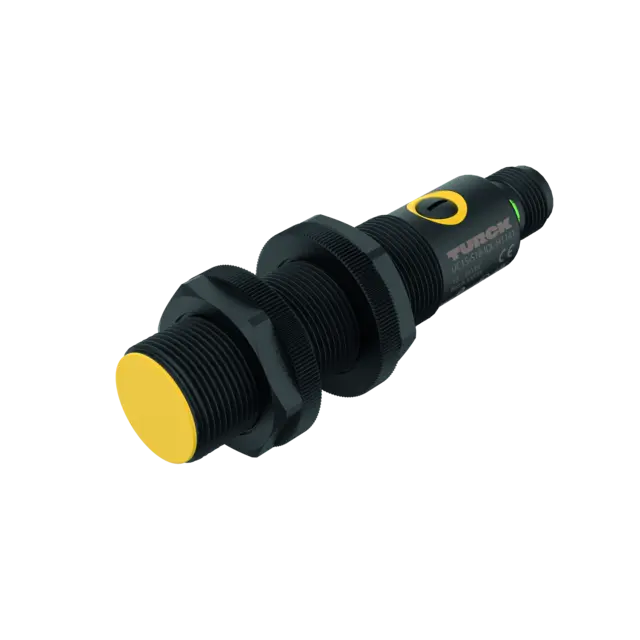

UC15-S18-IOL-H1141
95.00 €
- Rated Switching Distance (Flush / Non-Flush): 10mm/15mm
- Switching Frequency: ≤100 Hz
- Housing: M18 x 1, plastic
- Communication: IO-Link
- Output: 4-wire, NO/NC programmable, PNP/NPN
- Supply: 10…30 VDC

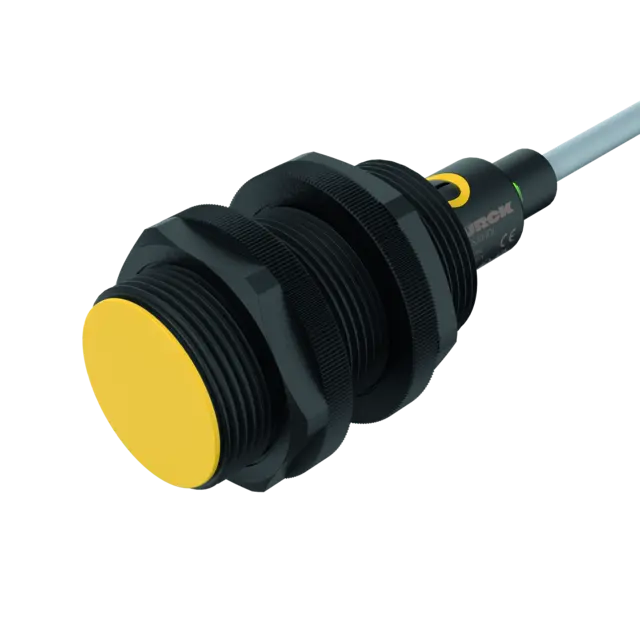

UC25-S30-IOL
99.00 €
- Rated Switching Distance (Flush / Non-Flush): 15mm/25mm
- Switching Frequency: ≤100 Hz
- Housing: M30 x 1.5, plastic
- Communication: IO-Link
- Output: 4-wire, NO/NC programmable, PNP/NPN
- Supply: 10…30 VDC

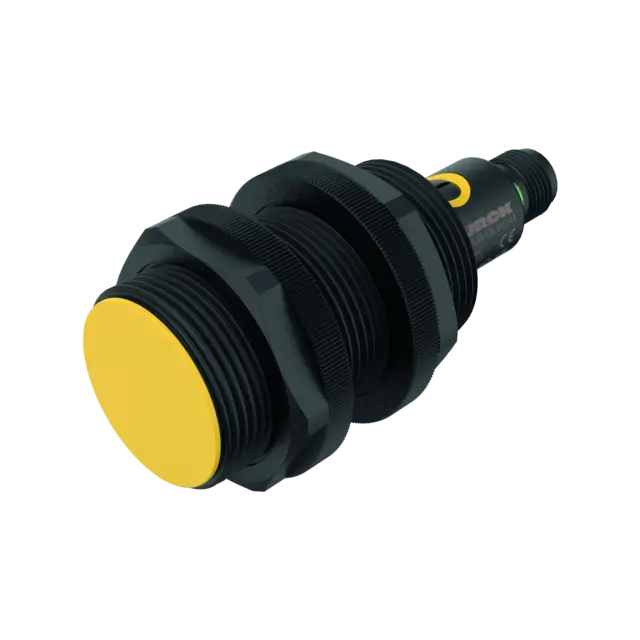

UC25-S30-IOL-H1141
99.00 €
- Rated Switching Distance (Flush / Non-Flush): 15mm/25mm
- Switching Frequency: ≤100 Hz
- Housing: M30 x 1.5, plastic
- Communication: IO-Link
- Output: 4-wire, NO/NC programmable, PNP/NPN
- Supply: 10…30 VDC

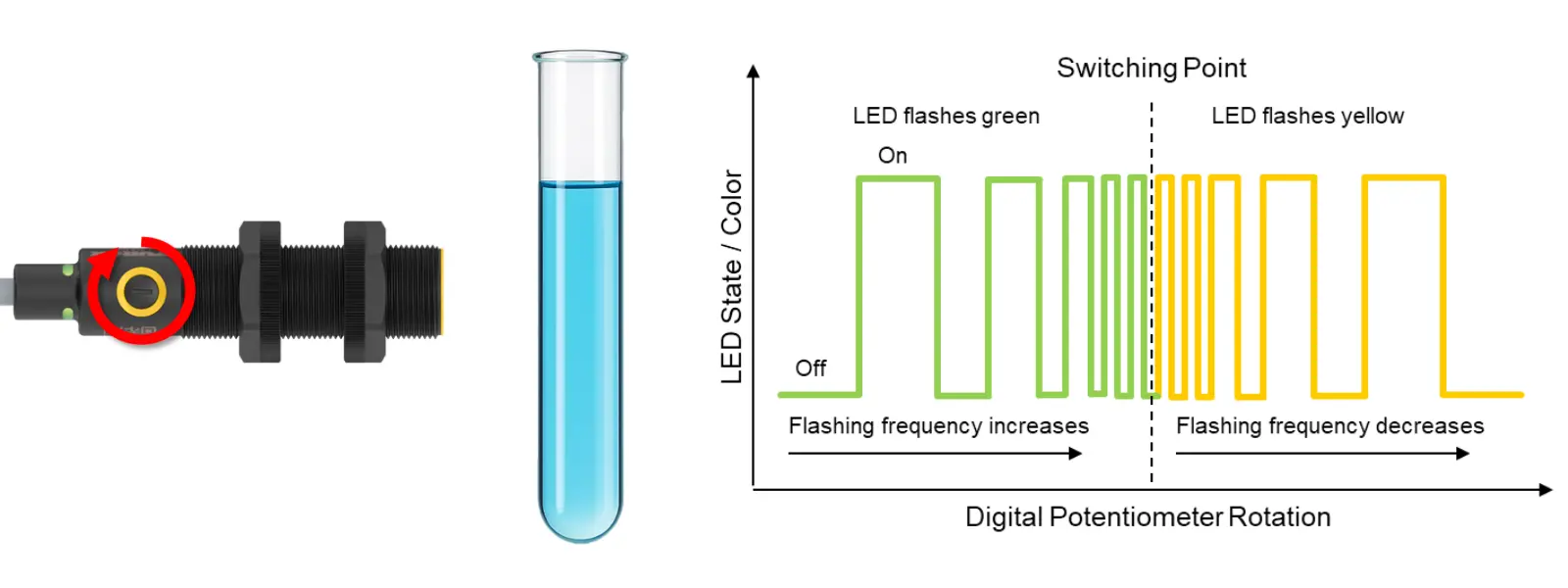

Setpoint Teaching with Digital Potentiometer and Optical Feedback
Turck’s next-gen capacitive sensors simplify setpoint adjustment through a user-friendly digital potentiometer (Digipot) with LED feedback. As the potentiometer is turned:
- The green LED begins to flash.
- The closer the setting is to the switching point, the faster the flashing frequency becomes.
- Upon reaching the switching point, the LED changes to yellow while still flashing.
- If sensitivity is increased further, the flashing slows down again.
Once the ideal setpoint is found and the Digipot is no longer turned, the LED stops flashing after 2 seconds and reverts to normal operation:
- Green – object not detected (not dampened)
- Yellow – object detected (dampened)
This visual feedback ensures fast and precise configuration with minimal effort.
