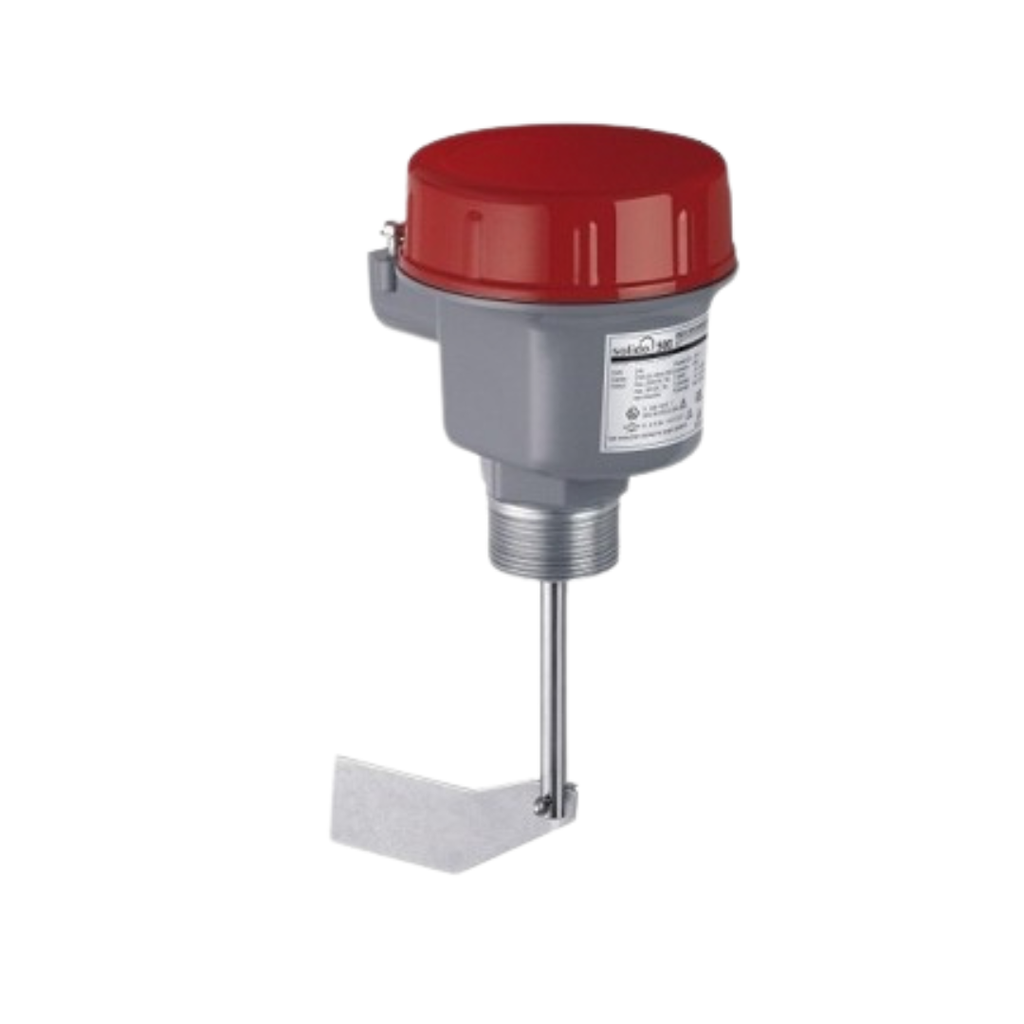

Level sensor rotating, ATEX 20/21, R1 1/2", 24VDC supply, SPDT relay, L=150mm
Level switch with adjustable sensitivity (100-300 g/l)
Power supply: 24VDC
Process temperature: -25°C to +80°C
Ambient temperature: -25°C to +60°C
Process pressure: 0.8 Bar
Thread material: Aluminium
Extension material: 1.4301 (Stainless Steel 303)
Length: 150 mm
Cable gland: M20x1.5
Housing: Aluminium, IP66
Power supply: 24VDC
Process temperature: -25°C to +80°C
Ambient temperature: -25°C to +60°C
Process pressure: 0.8 Bar
Thread material: Aluminium
Extension material: 1.4301 (Stainless Steel 303)
Length: 150 mm
Cable gland: M20x1.5
Housing: Aluminium, IP66
Brand: UWT |
Level Measurement Range: 0 … 0.5 m |
Digital Output: Relay |
Supply: 24 VDC |
Process connection: R 1 1/2" |
Documents
Internal Reference:
SOLIDO500LEA
