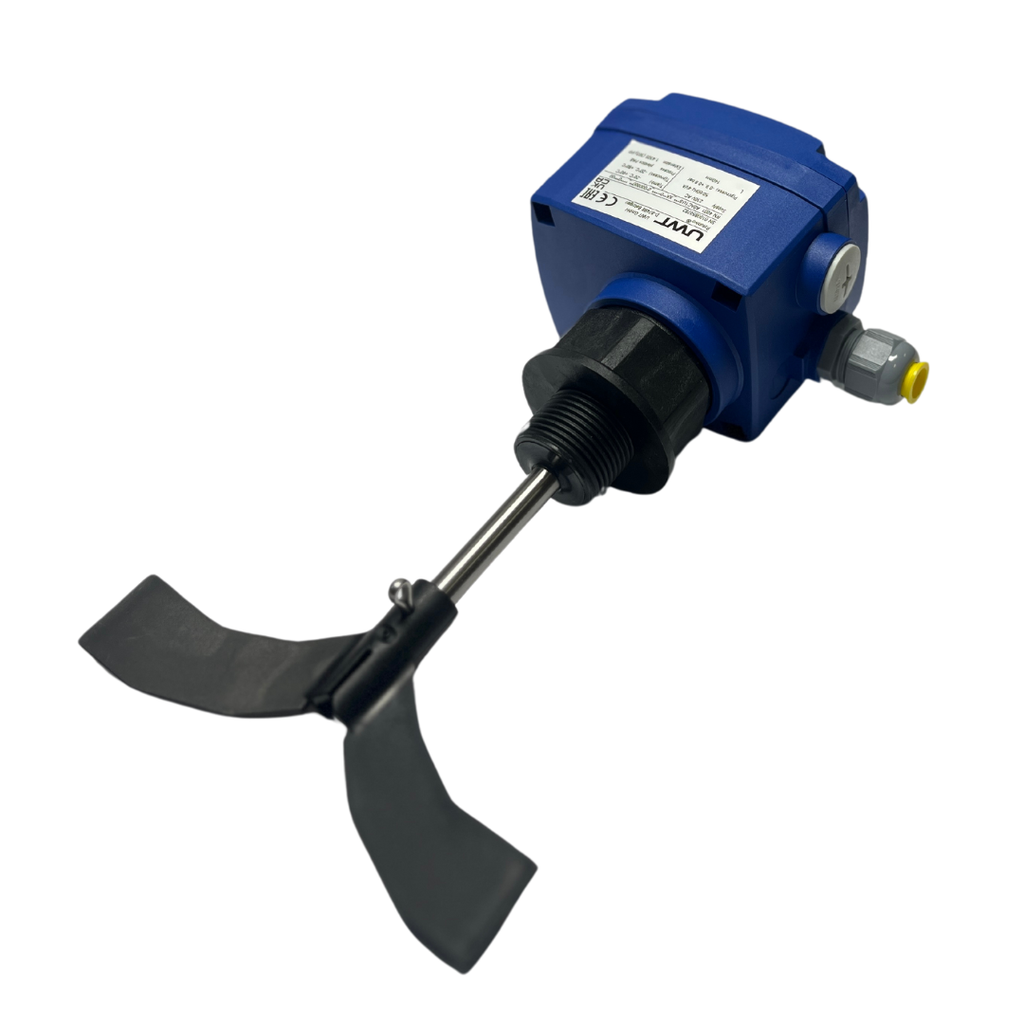

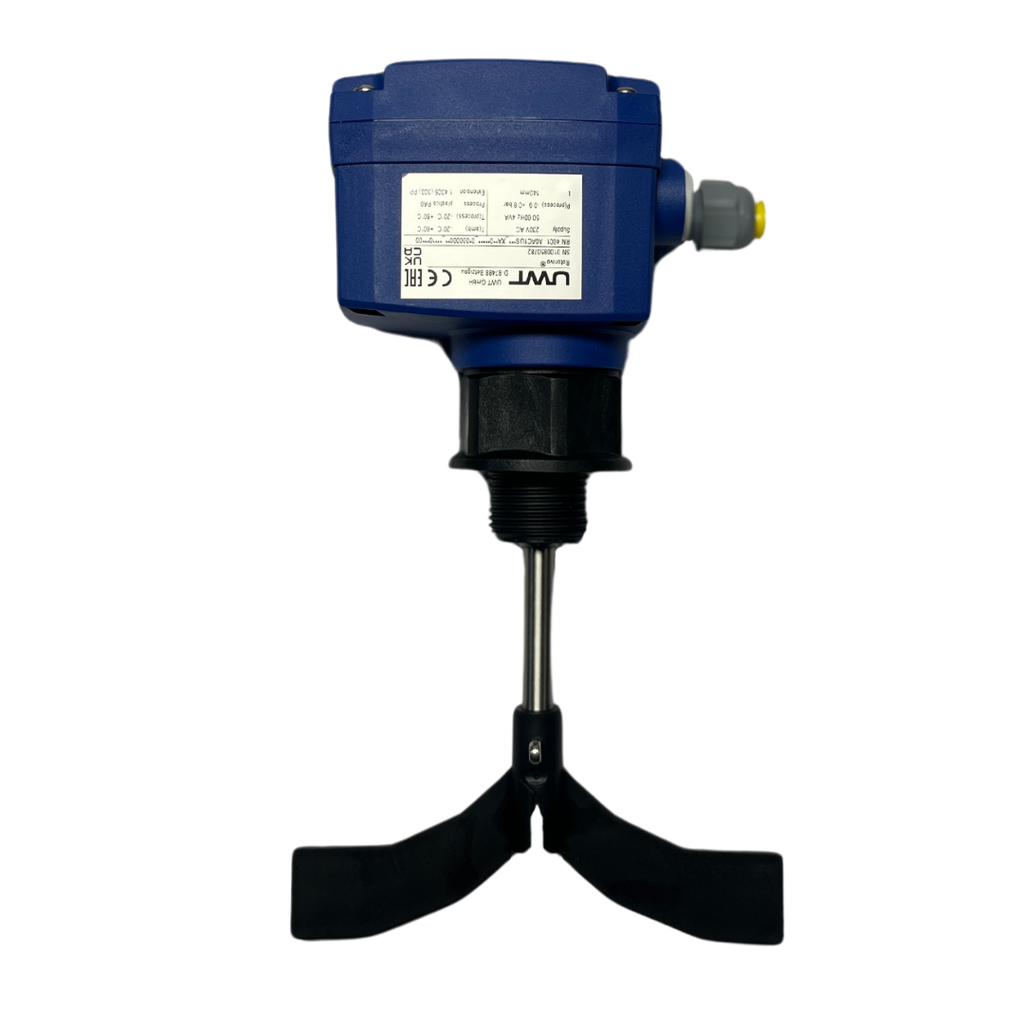

Level switch 24Vac, CE certified, G1 1/2 thread, PA6 housing, blade 40x98mm, L=140m
Power Supply: 24 V AC, 50-60 Hz, 4 VA
Process Connection: Thread G 1½", DIN 228
Material of Process Connection: Plastic PA6
Measuring Vane: Universal vane, 27 x 150 mm (1.06 x 5.91") plastic
Length of Extension L: Standard (for material plastic only)
Process Connection: Thread G 1½", DIN 228
Material of Process Connection: Plastic PA6
Measuring Vane: Universal vane, 27 x 150 mm (1.06 x 5.91") plastic
Length of Extension L: Standard (for material plastic only)
| Brand: UWT |
| Level Measurement Range: 0 … 0.5 m |
| Digital Output: Relay |
| Supply: 24 VAC |
| Process connection: G 1 1/2" |
Documents
Internal Reference:
RN4001A0DA1US***_0A**0*****_0*000000**_****0***00_0_0_0
