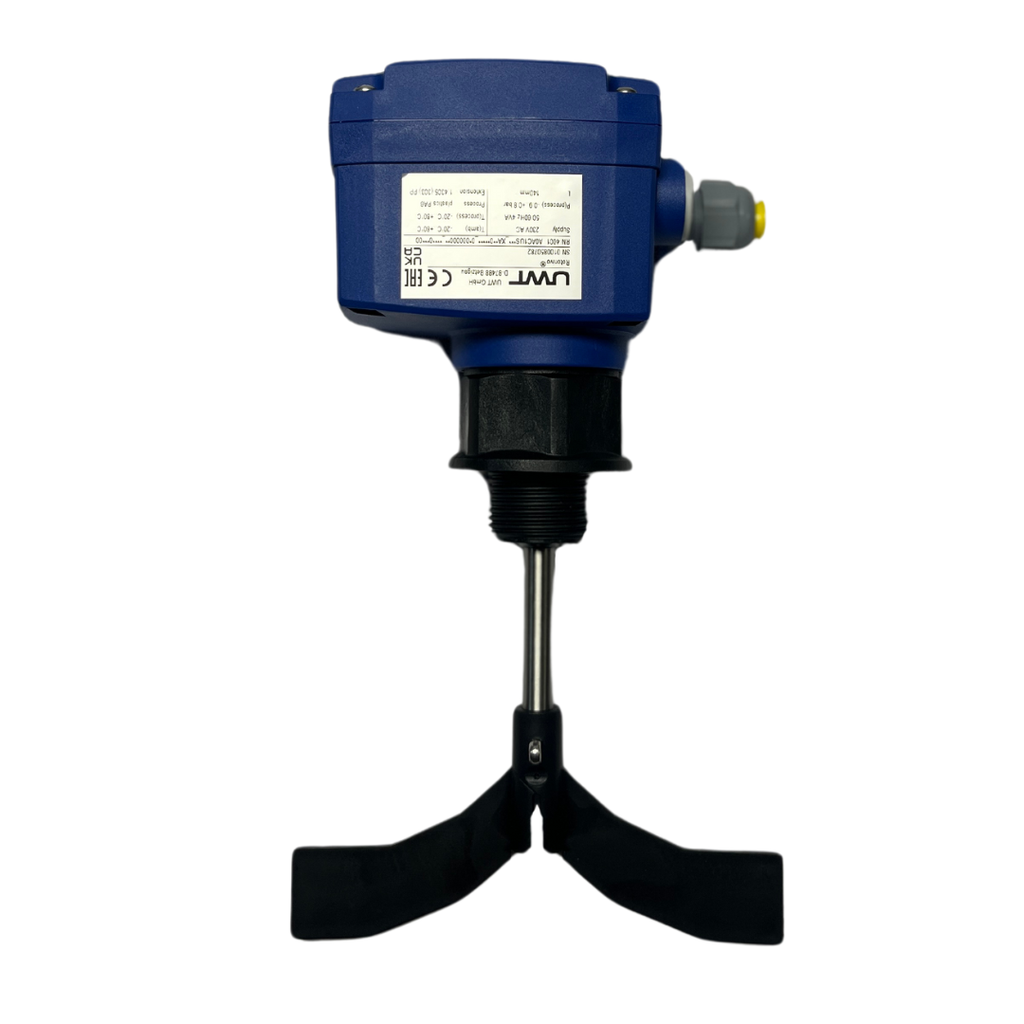

Level switch RN4001, 230Vac, G1", universal plastic vane 27x150mm, L=140mm
Power Supply: 230 V AC, 50-60 Hz, 4 VA
Process Connection: Thread G 1", DIN 228
Material of Process Connection: Plastic PA6
Measuring Vane: Universal vane, 27 x 150 mm (1.06 x 5.91") plastic
Length of Extension L: Standard (for material plastic only)
Process Connection: Thread G 1", DIN 228
Material of Process Connection: Plastic PA6
Measuring Vane: Universal vane, 27 x 150 mm (1.06 x 5.91") plastic
Length of Extension L: Standard (for material plastic only)
| Brand: UWT |
| Level Measurement Range: 0 … 0.5 m |
| Digital Output: Relay |
| Supply: 20–230 VAC/VDC |
| Process connection: G 1" |
Documents
Internal Reference:
RN4001A0AC1US***_XA**0*****_0*000000**_****0***00_0_0_0
