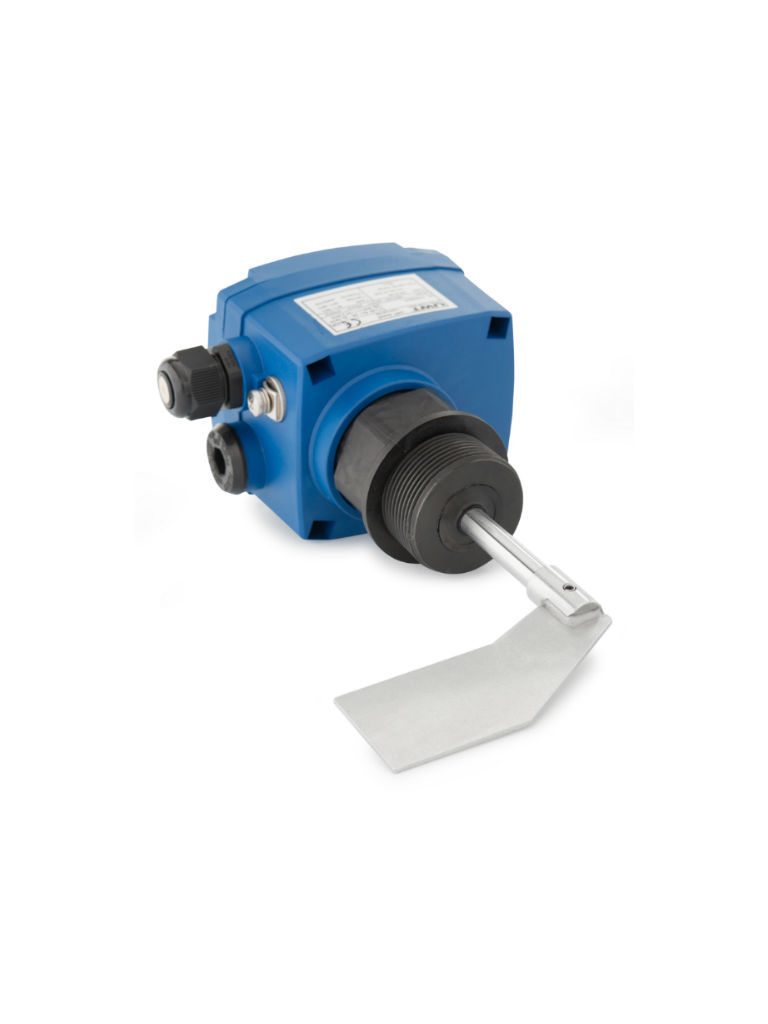

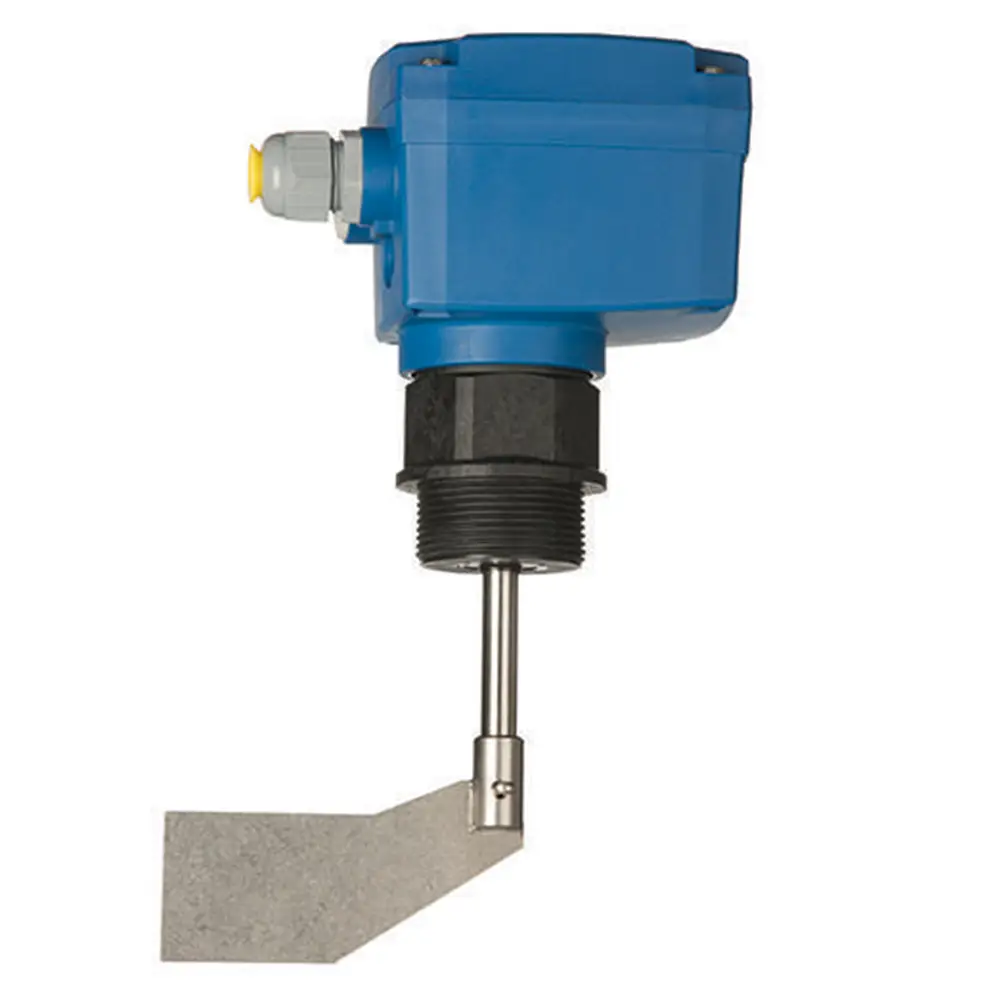

Level sensor rotating,G1 1/2", 230VAC supply, paddle 40x98mm, L=130mm
Power Supply: 230 V AC, 50-60 Hz, 4 VA
Process Connection: Thread G 1½", DIN 228
Material of Process Connection: Plastic PA6
Measuring Vane: Boot-shaped, 40 x 98 mm (1.57 x 3.86") stainless steel, suitable for 1½" socket Length of Extension L: Standard (for material plastic only)
Process Connection: Thread G 1½", DIN 228
Material of Process Connection: Plastic PA6
Measuring Vane: Boot-shaped, 40 x 98 mm (1.57 x 3.86") stainless steel, suitable for 1½" socket Length of Extension L: Standard (for material plastic only)
| Brand: UWT |
| Level Measurement Range: 0 … 0.5 m |
| Digital Output: Relay |
| Supply: 20–230 VAC/VDC |
| Process connection: G 1 1/2" |
Documents
Internal Reference:
RN4001A0AA1AS***_0A**0*****_0*000000**_****0***00_0_0_0
