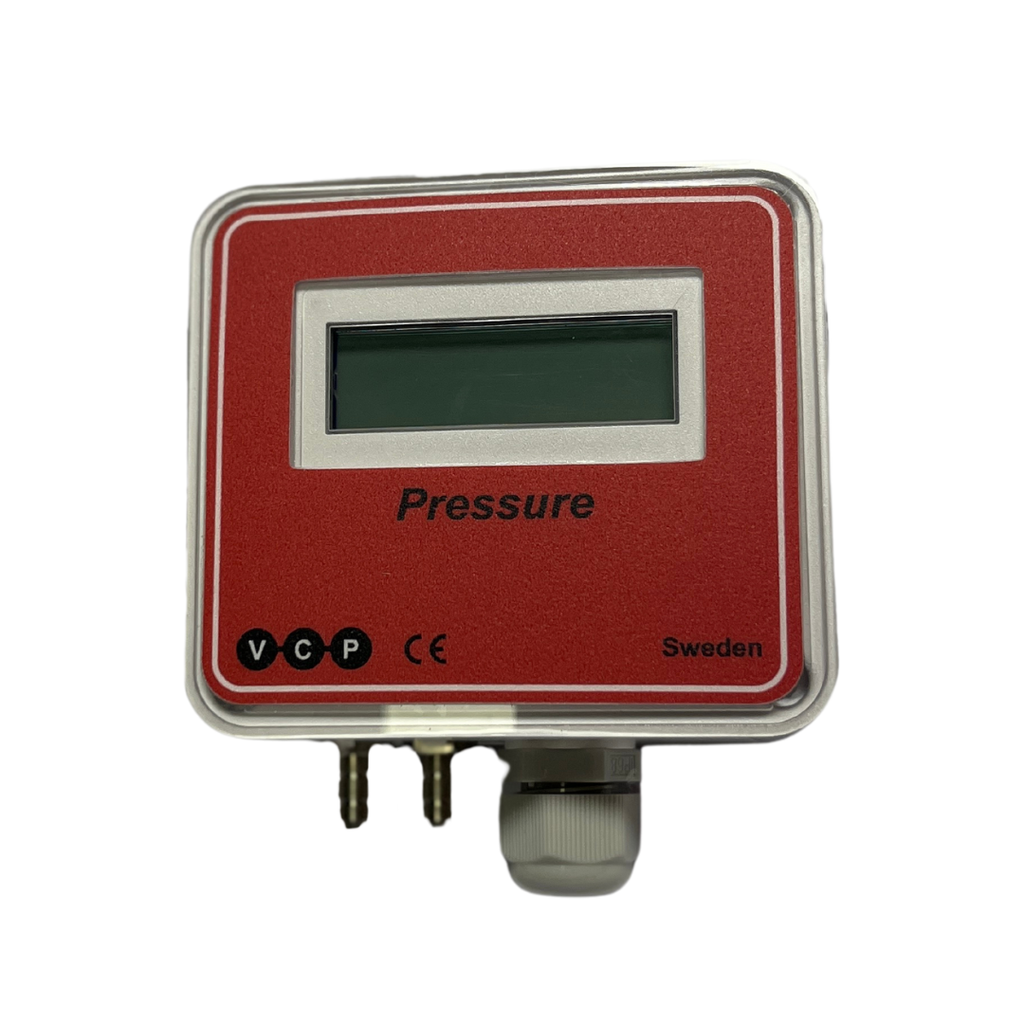

Differential pressure sensor programmable range: 50/250Pa, 4-20 mA, with display
Pressure Ranges: 0 to 100 Pa, 0 to 250 Pa, 0 to 500 Pa, 0 to 750 Pa, 0 to 1000 Pa.
Bidirectional: -50 to +50 Pa, -125 to +125 Pa, -250 to +250 Pa, -375 to +375 Pa, -500 to +500 Pa. Pressure Units: Pa, mmHH₂O, mbar, inWG, mmHG, daPa, kPa, hPa
Response Times: 0.5, 1, 2, or 4 seconds (selectable via DIP switches)
Accuracy: +/-1%
Output and Power Supply: 4-20 mA (2-wire), 12-30 Vdc
IP54 protection
Overpressure tolerance 15 kPa
Operating temperature -10°C to +60°C
Storage temperature -10°C to +70°C
Bidirectional: -50 to +50 Pa, -125 to +125 Pa, -250 to +250 Pa, -375 to +375 Pa, -500 to +500 Pa. Pressure Units: Pa, mmHH₂O, mbar, inWG, mmHG, daPa, kPa, hPa
Response Times: 0.5, 1, 2, or 4 seconds (selectable via DIP switches)
Accuracy: +/-1%
Output and Power Supply: 4-20 mA (2-wire), 12-30 Vdc
IP54 protection
Overpressure tolerance 15 kPa
Operating temperature -10°C to +60°C
Storage temperature -10°C to +70°C
Brand: VCP |
Maximum pressure: 10 bar |
Analog Output: 4–20 mA |
Supply: 24 VAC, 24 VDC |
Wiring: 2-wire |
Communication: 4-20mA |
Documents
Internal Reference:
PAT420D
