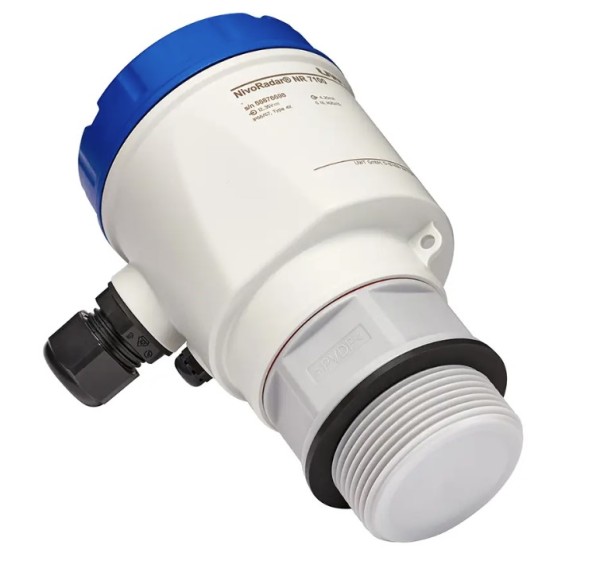

Level sensor NR7100 for liquids, radar FMCW, 0-10 m, 4-20 mA, G 1 1/2"; PVDF, 8° antenna, max 60°C/3 bar, without display, bluetooth
Process Temperature: max. +60°C (140°F)
Process Overpressure: max. 3 bar (43.51 psi)
Electronic Module: 2-wire 4-20 mA
Process Connection: Thread G 1 1/2" DIN ISO 228-1
Measuring Range: max. 8 m (26.3 ft)
Cable and Line Entry: M20 x 1.5 cable gland
Plug on Display: Without display, only programmable with mobile device and UWT LevelApp
Process Overpressure: max. 3 bar (43.51 psi)
Electronic Module: 2-wire 4-20 mA
Process Connection: Thread G 1 1/2" DIN ISO 228-1
Measuring Range: max. 8 m (26.3 ft)
Cable and Line Entry: M20 x 1.5 cable gland
Plug on Display: Without display, only programmable with mobile device and UWT LevelApp
Internal Reference |
NR7100E011AA1A0*_0********* |
| Brand | UWT |
| Wiring | 2-wire |
| Max Level Measurement | 10 m |
| Process sensor output | Analog 4-20 mA |
| Process connection | G 1 1/2" |
| Communication | HART |
| Supply | 12 VDC, 24 VDC |
| Electrical connection | Terminal |
