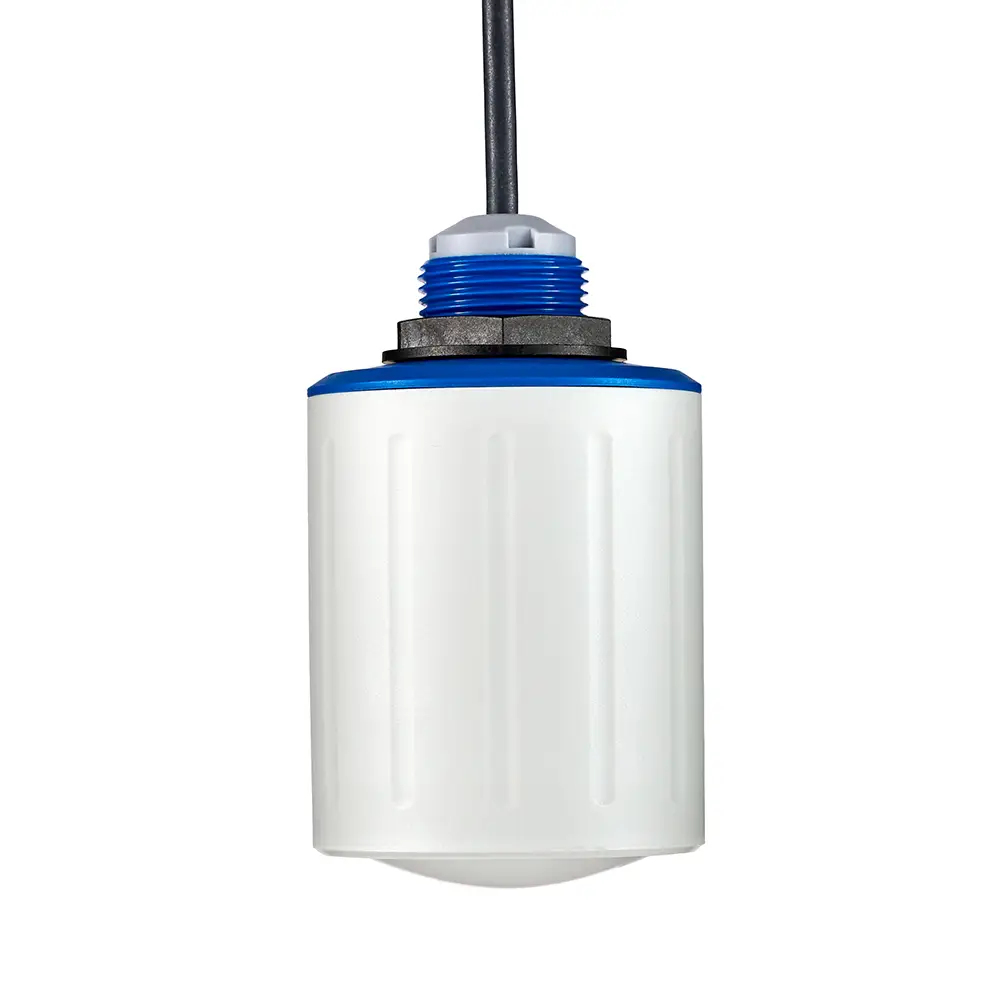

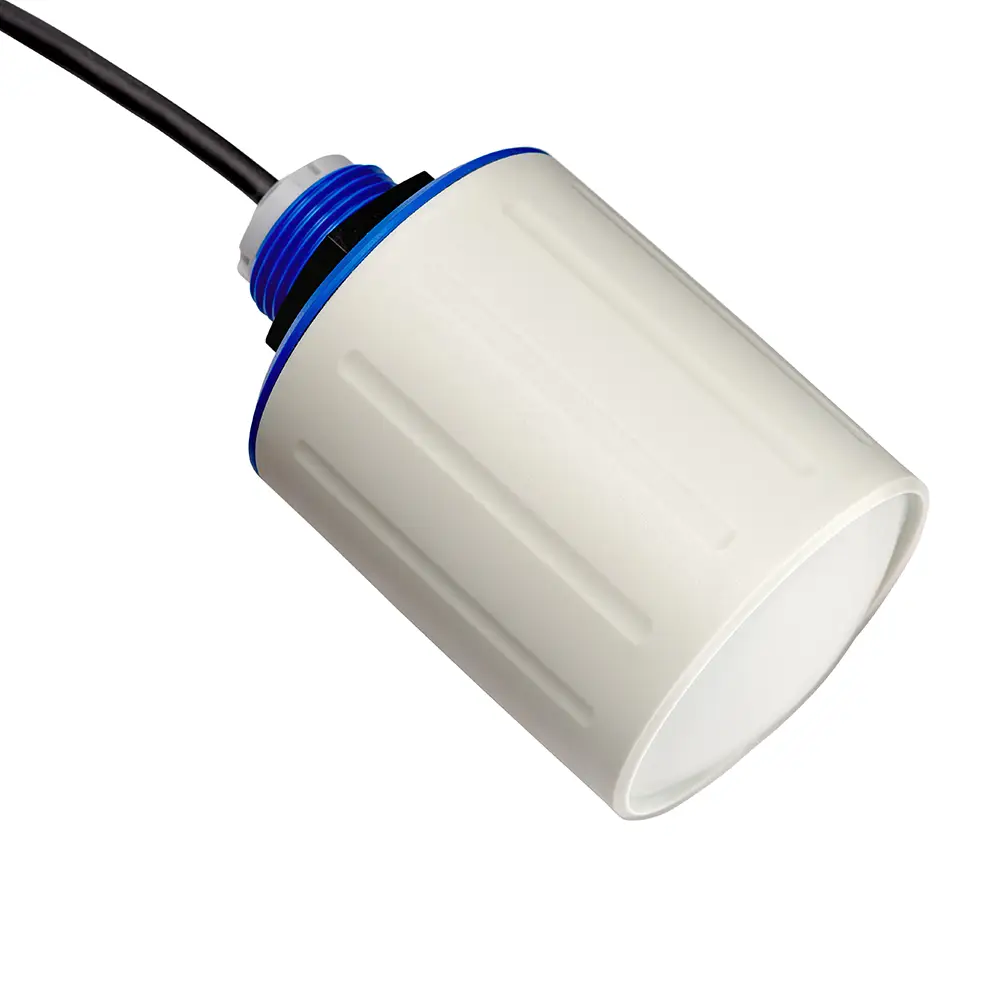

  3. Level sensor NR4100, radar FMCW, 0-30 m (0-20 m bulk), 4-20 mA HART, G 1", 5m cable, 4° antenna, max 80°C/3 bar, 6 years Extended Warranty
Default

Level sensor NR4100, radar FMCW, 0-30 m (0-20 m bulk), 4-20 mA HART, G 1", 5m cable, 4° antenna, max 80°C/3 bar, 6 years Extended Warranty

https://www.willsensors.com/web/image/product.template/7594/image_1920?unique=ad8c764
Housing: PVDF IP66/IP68, Type 6P
Certificates: ATEX, IEC-Ex, cFMus, UKEX, INMETRO, KC, FCC, IC (Gas, dust explosion protection),
WHG Measuring range: up to 30 m
Measurement accuracy: ±2 mm
Pressure range: -1 to +3 bar (-14.5 to +43.5 psi)
Supply voltage: 12-35 V DC
Process connection: NPT 1", R 1", G 1" or mounting flange (> DN 80 / 3")
Process temperature: -40°C to +80°C (-40°F to +176°F)
Signal output: 4...20 mA, 2-wire
Communication: HART
Sensitivity: DK value ≥ 1.1
Sensor material: PVDF, FDA registered
Frequency: 80 GHz FMCW

1,156.00 € 1156.0 EUR 1,156.00 € Tax Excluded

Not Available For Sale

  • Brand
  • Process sensor output
  • Communication
  • Supply
  • Process connection
  • Wiring
  • Electrical connection
  • Cable lenght
  • Max Level Measurement
  • Supply
  • Supply

This combination does not exist.

Contact Us
Brand: UWT
Process sensor output: Analog 4-20 mA
Communication: HART
Supply: 24 VDC, 12 VDC, 24 VDC
Process connection: G 1"
Wiring: 2-wire
Electrical connection: Cable Connection
Cable lenght: 5 m
Max Level Measurement: 30 m

Terms and Conditions

Internal Reference: NR4100A021HD3E0*_X0000*0***
