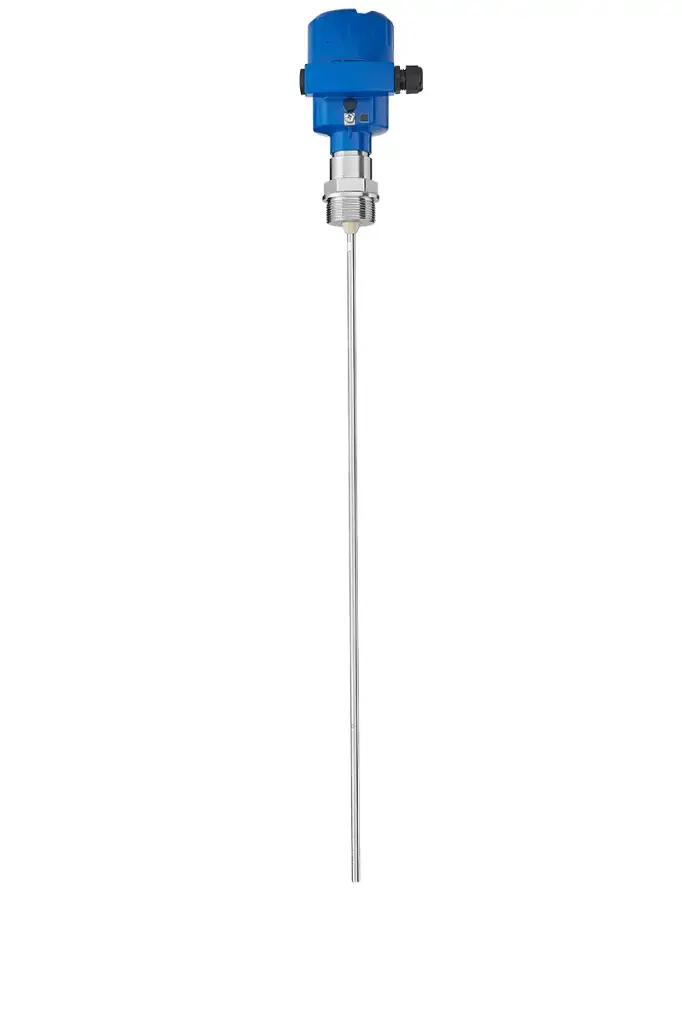

Level sensor, radar type NG8100, L=800 mm, 4-20 mA Hart , for condensate, display

https://www.willsensors.com/web/image/product.template/6118/image_1920?unique=8cd480a

Pos.10 - Type: [A] NG 8100 Pos.20 - Certificate: [0] CE / UKCA / TR-CU Pos.30 - Process temperature / insulator: [F] -40°C..+150°C (-40°F..302°F) FKM Single line of defense, PEEK Pos.40 - Electronic module: [A] 2-wire 4..20 mA, HART (9.6..35 V DC) Pos.50 - Process connection: [0A] Thread ¾" NPT PN40 taper, ANSI/ ASME B1.20.1 Pos.80 - Version of Probe L: [E] Rod ø8 mm (0.31") Pos.90 - Display and adjustment module: [A] with display and adjustment module, with inspection window in lid Pos.100 - Rigid part L1: [0] without (rod version) Pos.130 - Cable entry: [D] 1x M20x1.5 screwed cable gland PA (ø5-9 mm [0.20-0.35"]) 1x blind plug Pos.140 - Language manual: [2] EN - English Pos.160 - Housing: [A] aluminium single chamber Pos.190 - Dimensions centering weight (diameter / height): [0] without

Login | Register to see price

Not Available For Sale

  • Brand
  • Process sensor output
  • Communication
  • Process connection
  • Electrical connection
  • Supply
  • Supply
  • Max Level Measurement
  • Wiring

This combination does not exist.

Contact Us
Internal Reference
 NG8100A0FA0AXEA0_00D2*A0000

Terms and Conditions

Brand UWT
Process sensor output Analog 4-20 mA
Communication HART
Process connection G 3/4"
Electrical connection Terminal
Supply 12 VDC, 24 VDC
Max Level Measurement 0.8 m
Wiring 2-wire
ng8-technical-product-sheet-en.pdf
Download
