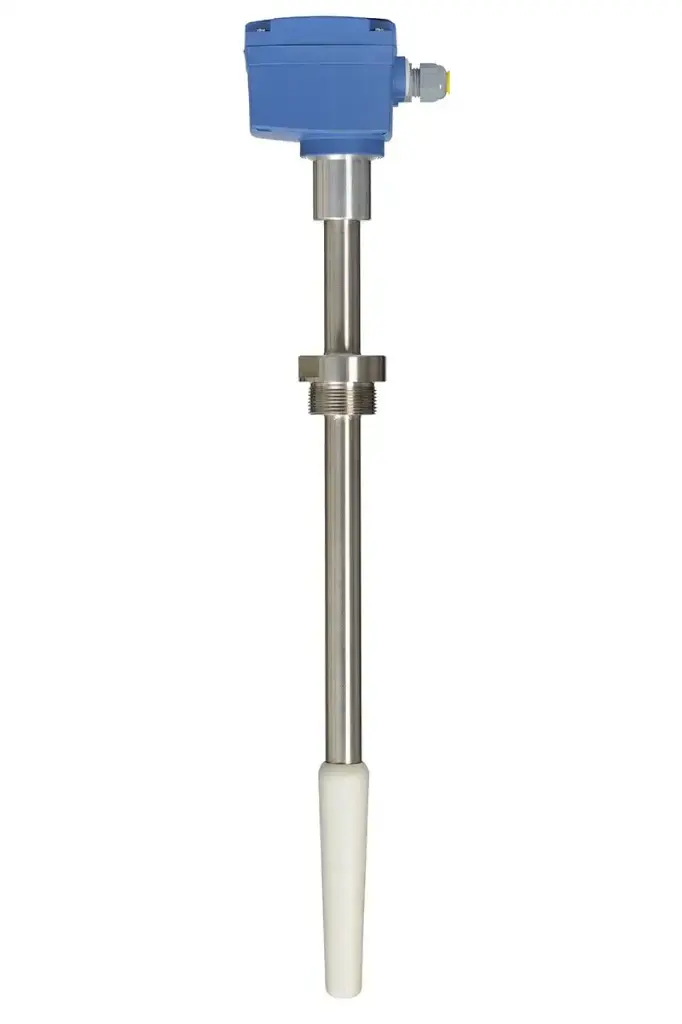

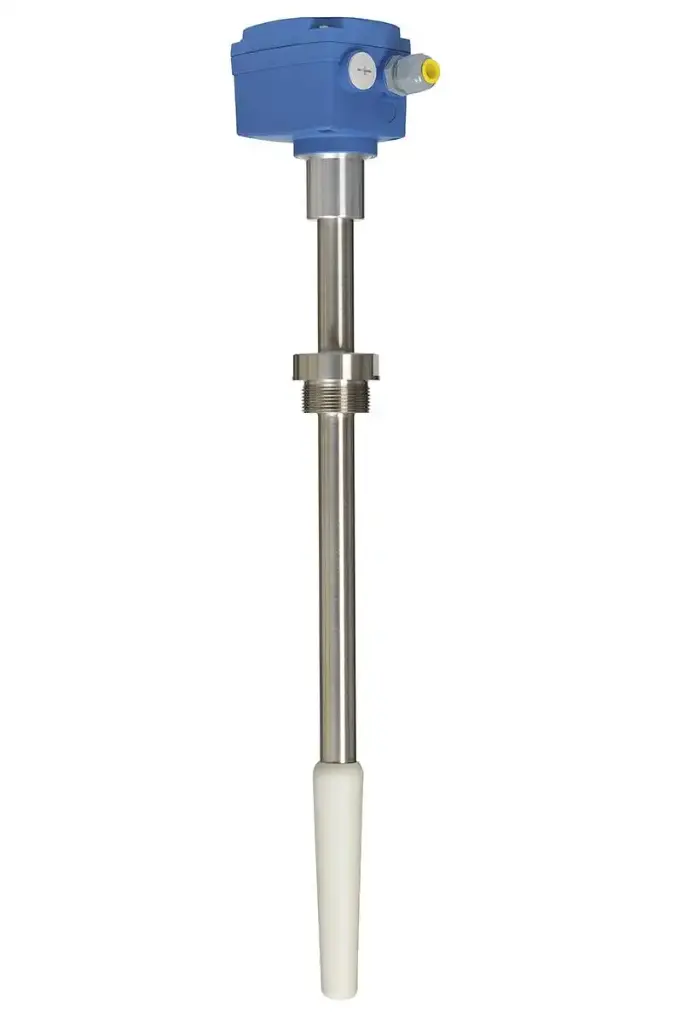

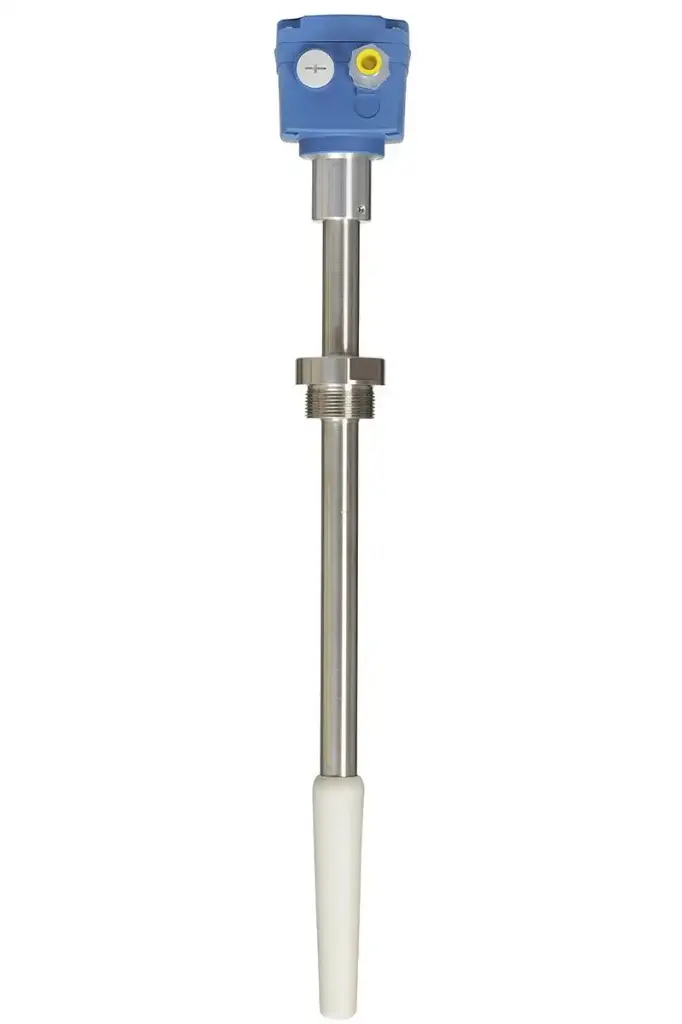

Level sensor capacitive, G1 1/2", 21-230VAC 21-40VDC supply, DPDT relay, L=190mm
Process Temperature: max. +180°C (356°F)
Electronic Module: Relay DPDT 21..230 V AC, 21..45 V DC
Process Connection: Thread G 1½", DIN 228
Material of Process Connection: Stainless steel 1.4305 (303)
Length of Extension L: 190 mm (7.48")
Material of Extension L: Stainless steel 1.4305 (303) (Probe material: PPS)
Electronic Module: Relay DPDT 21..230 V AC, 21..45 V DC
Process Connection: Thread G 1½", DIN 228
Material of Process Connection: Stainless steel 1.4305 (303)
Length of Extension L: 190 mm (7.48")
Material of Extension L: Stainless steel 1.4305 (303) (Probe material: PPS)
Brand: UWT |
Level Measurement Range: 0 … 0.5 m |
Digital Output: Relay |
Supply: 100–240 VAC, 24 VDC |
Process connection: G 1 1/2" |
Documents
Internal Reference:
CN4020A02LB323**_0*********_00000*0***_****00*A*A_0_0_0L190mm
