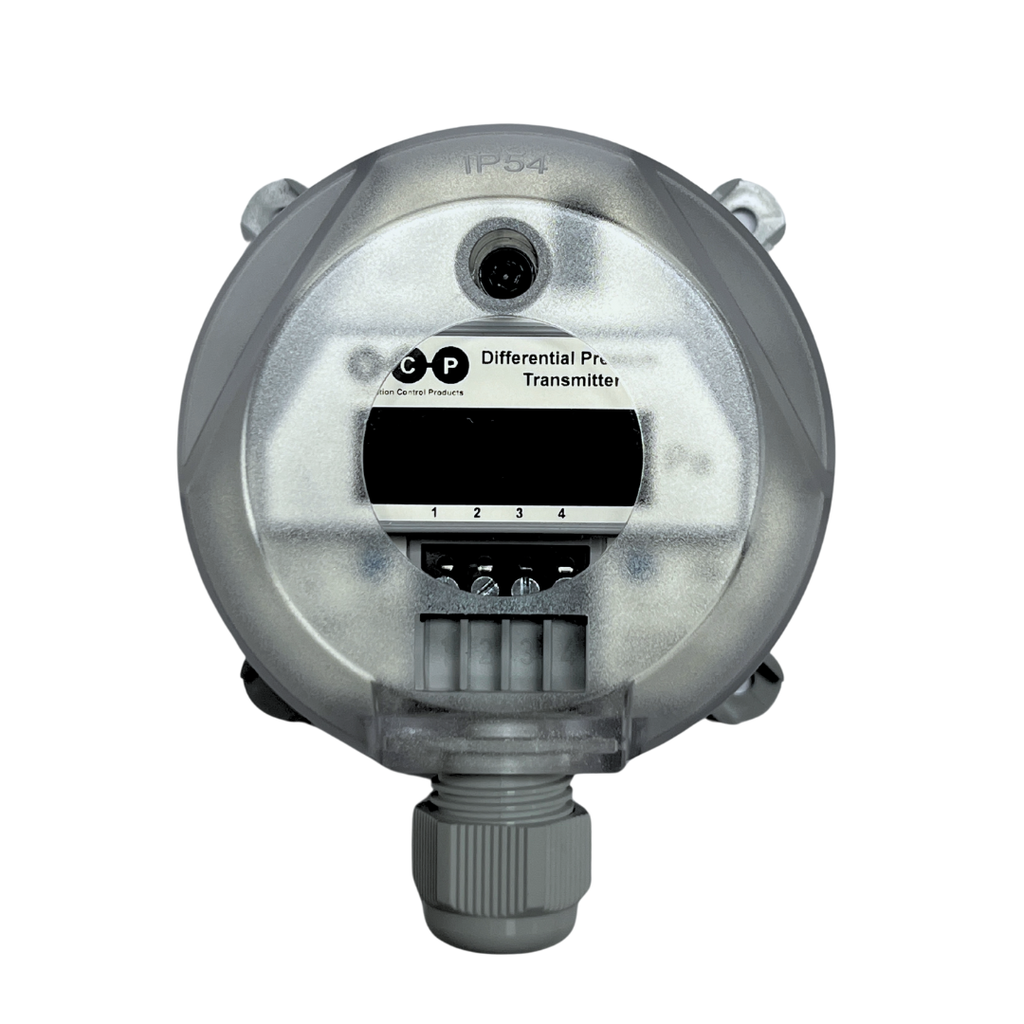

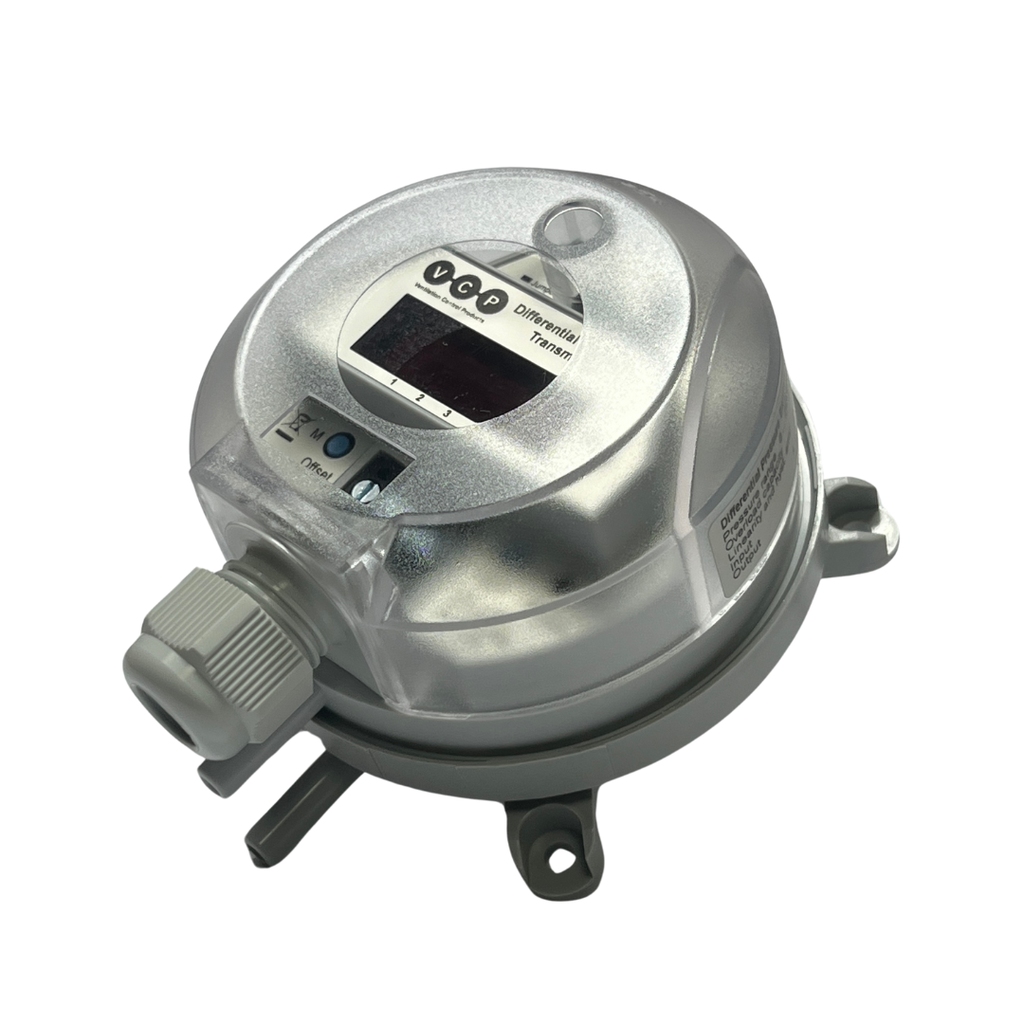

Differential Pressure Sensors 500/1000Pa, 4-20 mA/0-10V output, with display
Two pressure range options: 0-500 Pa and 0-1000 Pa
0-10 Vdc and 4-20 mA analog output
LED display for real-time pressure readings
Power supply: 24 V AC/DC
Response time: 100 ms or 1 second (jumper selectable)
0-10 Vdc and 4-20 mA analog output
LED display for real-time pressure readings
Power supply: 24 V AC/DC
Response time: 100 ms or 1 second (jumper selectable)
| Brand: VCP |
| Maximum pressure: 0.6 bar, 10 bar |
| Analog Output: 0–10 V, 4–20 mA |
| Supply: 24 VAC, 24 VDC |
| Wiring: 3-wire |
| Communication: 4-20mA, 0-10V |
