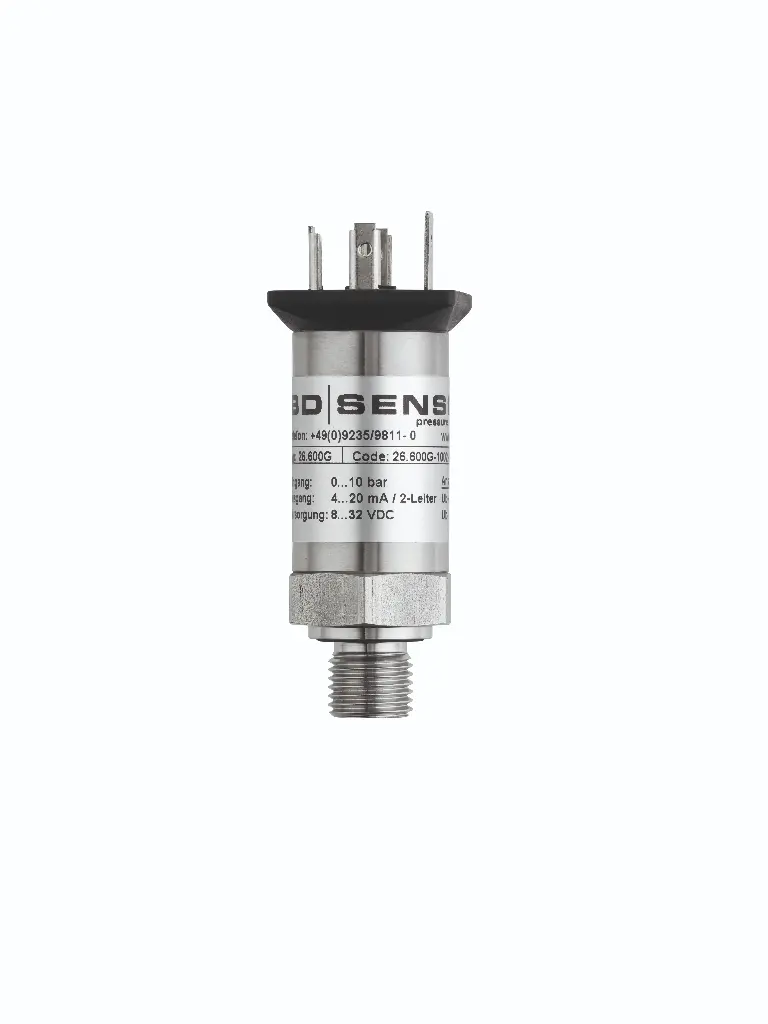

Pressure sensor 26.600G, -1...15 bar, 4-20 mA, G 1/2" EN 837
The 26.600 G is a standard OEM pressure transmitter for mechanical and plant engineering as well as general industrial applications. It features a robust ceramic sensor with 0.5% span accuracy according to EN IEC 62828-2 and covers nominal pressure ranges from 0…1 bar up to 0…400 bar. An oil- and grease-free version is available for sensitive applications.
| Brand: BD Sensors |
| Pressure type: Relative pressure |
| Pressure range (new): -1...15 bar |
| Pressure range: 15 bar |
| Process sensor output: Analog 4-20 mA |
| Process connection: G 1/2" |
| Supply: 12 VDC, 24 VDC |
| Electrical connection: DIN Connector |
| Wiring: 2-wire |
| Media type: Liquids, Gases |
Documents
Internal Reference:
26.600G-V153-R-1-5-100-200-1-827
