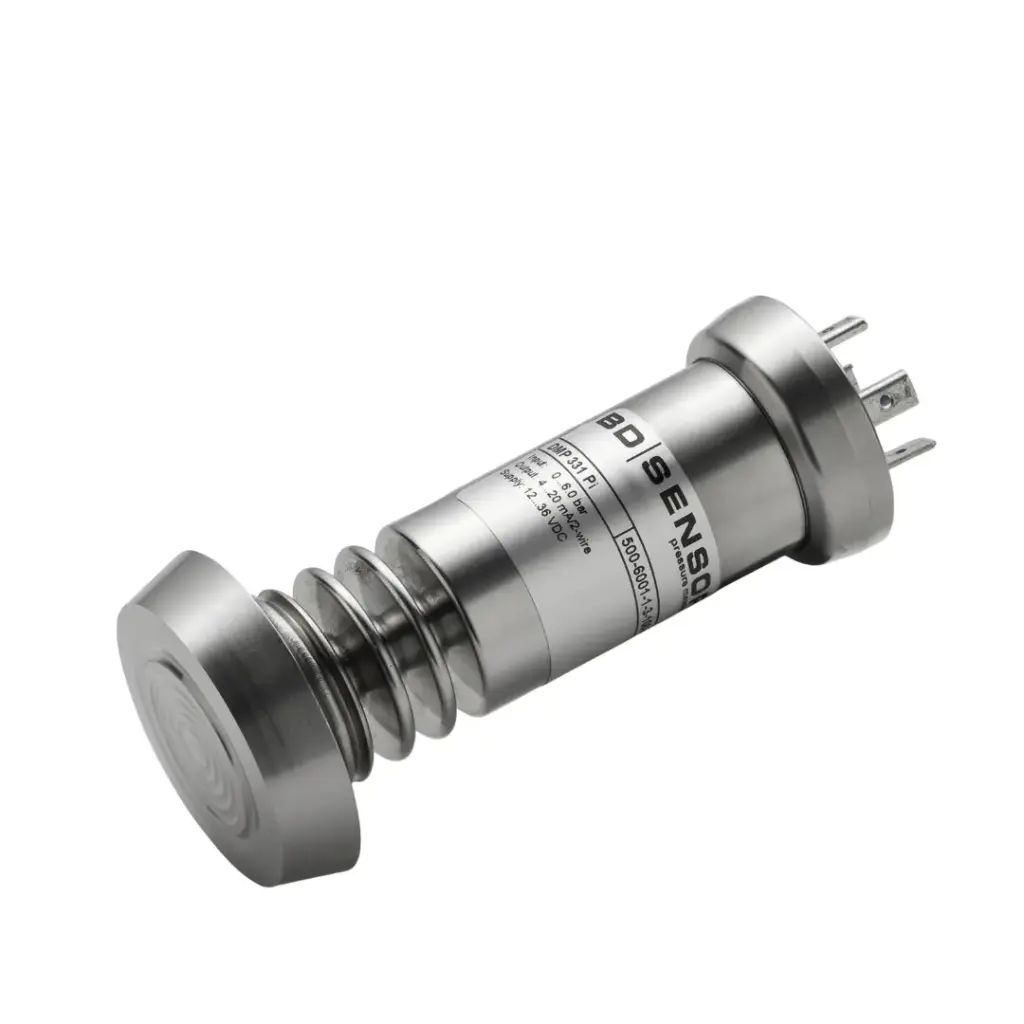

Pressure sensor DMP331Pi, -1...3 bar, 4-20 mA, G 3/4" DIN 3852, flush 2 x O ring, M12 connector, 4-pin
DMP 331 Pi is a high-precision, flush-mounted stainless steel pressure transmitter for hygienic applications in the food and pharmaceutical industries. The specially designed stainless steel sensor is combined with a new digital electronics platform that actively compensates hysteresis, temperature errors and non-linearity. Standard operation is possible from -40…125 °C, and with an integrated cooling element the process temperature range can be extended up to 300 °C.
Internal Reference |
500-V302-1-1-M10-Z66-1-1-2-111 |
| Brand | BD Sensors |
| Pressure range_old | 3 bar |
| Pressure range (bar) | -1...3 bar |
| Process sensor output | Analog 4-20 mA |
| Process connection | G 3/4" |
| Electrical connection | M12 |
| Supply | 12 VDC, 24 VDC |
| Wiring | 2-wire |
| Pressure type | Relative pressure |
| Media type | Liquids, Gases |
| Membrane type | Flush |
