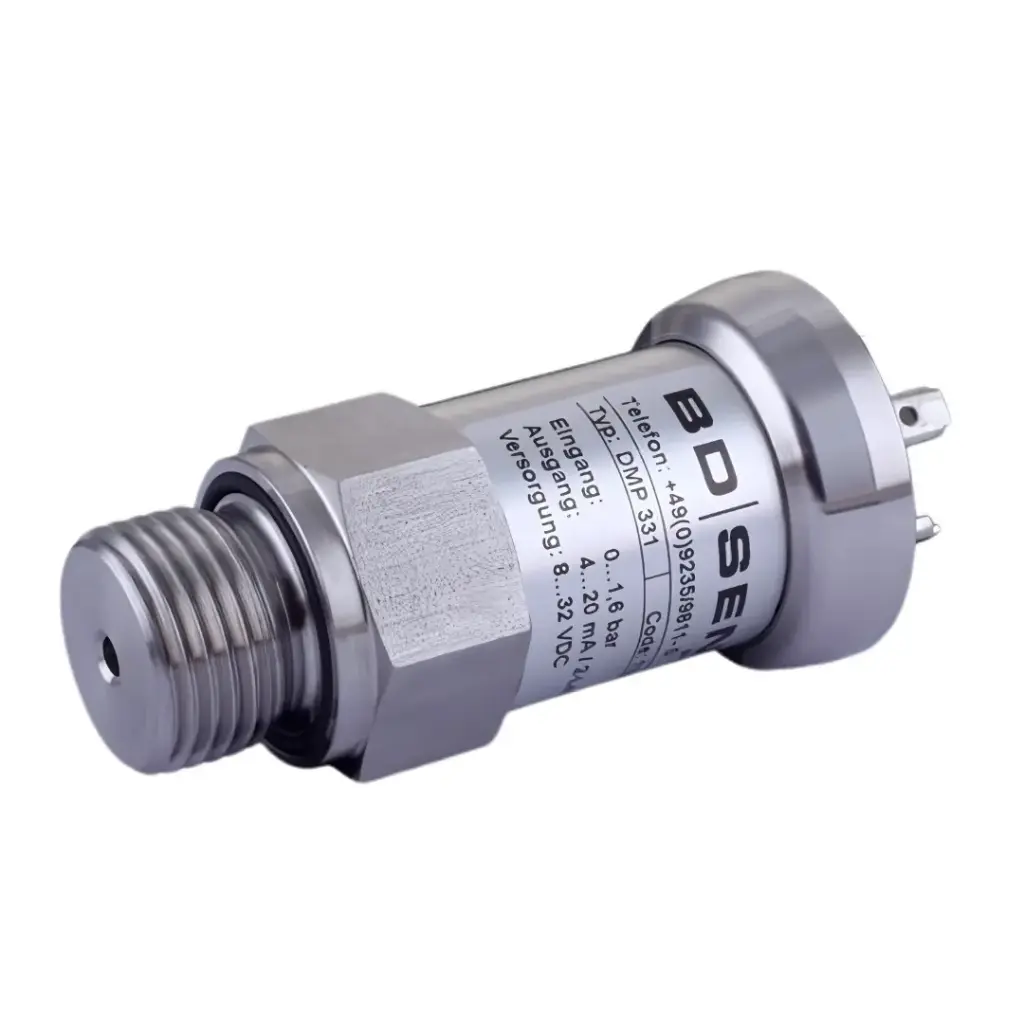

Pressure sensor DMP331, -1...3 bar, 4-20 mA Ex, G 1/4" EN DIN 3852, M12 connector, 4-pin
DMP 331 is a stainless steel pressure transmitter for universal industrial applications, provided the medium is compatible with stainless steel 1.4404 (316L) or 1.4435 (316L). Various elastomer seals and a helium-tested welded version are available. Its modular design allows combining different sensor elements, electronic modules, and electrical/mechanical connections, resulting in a wide range of configurations that meet almost all industrial requirements.
Internal Reference |
110-V302-E-3-M10-300-1-000 |
| Brand | BD Sensors |
| Pressure type | Relative pressure |
| Working pressure range | -1...3 bar |
| Process sensor output | Analog 4-20 mA |
| Process connection | G 1/4" |
| Electrical connection | M12 |
| Supply | 12 VDC, 24 VDC |
| Wiring | 2-wire |
| Media type | Liquids, Gases |
