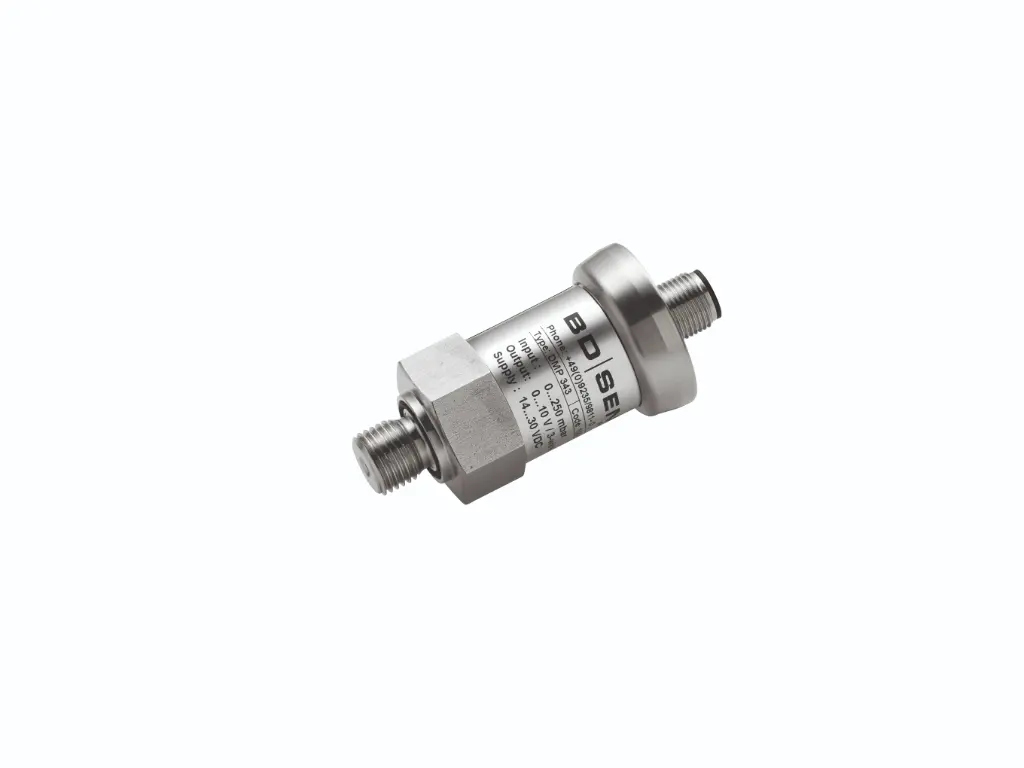

Pressure sensor DMP343, -0.01...0.05 bar, 4-20 mA, G 1/2" DIN 3852
DMP 343 is a stainless steel pressure transmitter without media isolation, designed for the measurement of very low gauge pressure and vacuum, particularly in HVAC applications. It is suitable for non-aggressive, dry gases and low-viscosity, non-aggressive oils. The transmitter offers excellent thermal behaviour, outstanding long-term stability and a wide range of output signals and mechanical/electrical connections, making it a versatile solution for HVAC and general mechanical and plant engineering.
Internal Reference |
100-D226-1-5-100-100-1-000 |
| Brand | BD Sensors |
| Pressure range_old | ≤ 0.1 bar |
| Pressure range (bar) | -0.01...0.05 bar |
| Electrical connection | DIN Connector |
| Process sensor output | Analog 4-20 mA |
| Supply | 12 VDC, 24 VDC |
| Pressure type | Relative pressure |
| Media type | Liquids, Gases |
DMP343.pdf
Download
