3D Optical Level Sensor
The ZMX series 3D Time of Flight Sensor provides a reliable, single-sensor solution for monitoring fill levels in bins, enhancing efficiency in factories, warehouses, and distribution centers. By utilizing advanced 3D imaging and thousands of laser measurement points, the ZMX calculates the volume and peak height of items within a user-defined area, covering a 60° × 45° field of view at distances from 200 mm to 2,500 mm. Unlike single-point sensors, the ZMX offers complete three-dimensional coverage, preventing overflow and minimizing errors due to gaps or object angles. Ideal for applications like bin fill monitoring, overfill prevention, and pallet stacking, it ensures accurate tracking for optimal operational performance.

Banner ZMX-3DE2500HF-Q7
Technical Specifications:
- Sensing Range: 200 mm to 2,500 mm
- Field of View: 60° horizontal × 45° vertical
- Protection Rating: IP65
- Output: Discrete, 2 NPN/PNP configurable outputs
- Sensing Beam: Infrared laser, Class 1
- Response Time: Minimum 150 ms
- Power Supply: 12-30 V DC

Wireless Data Signal Monitoring and Control

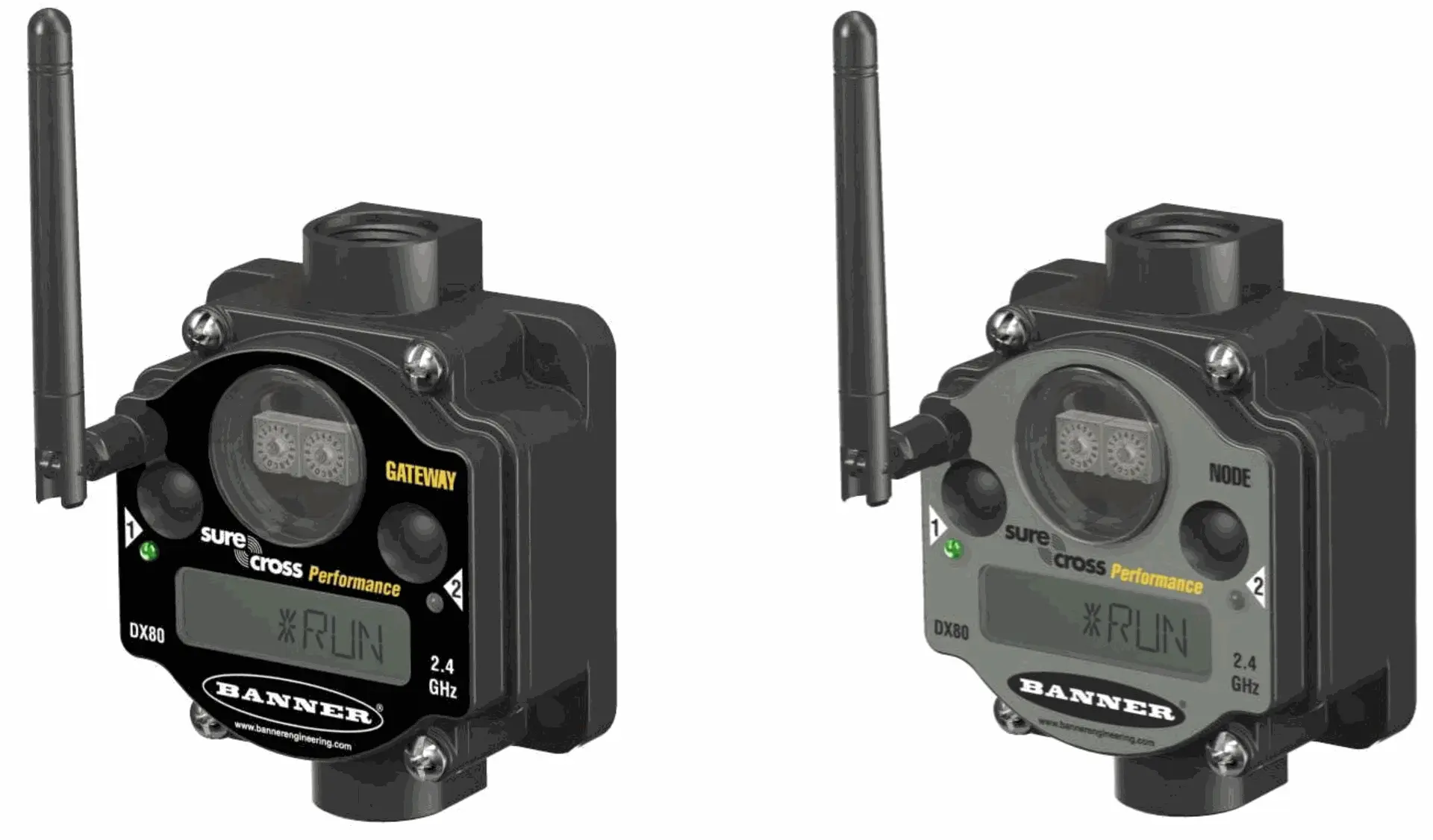

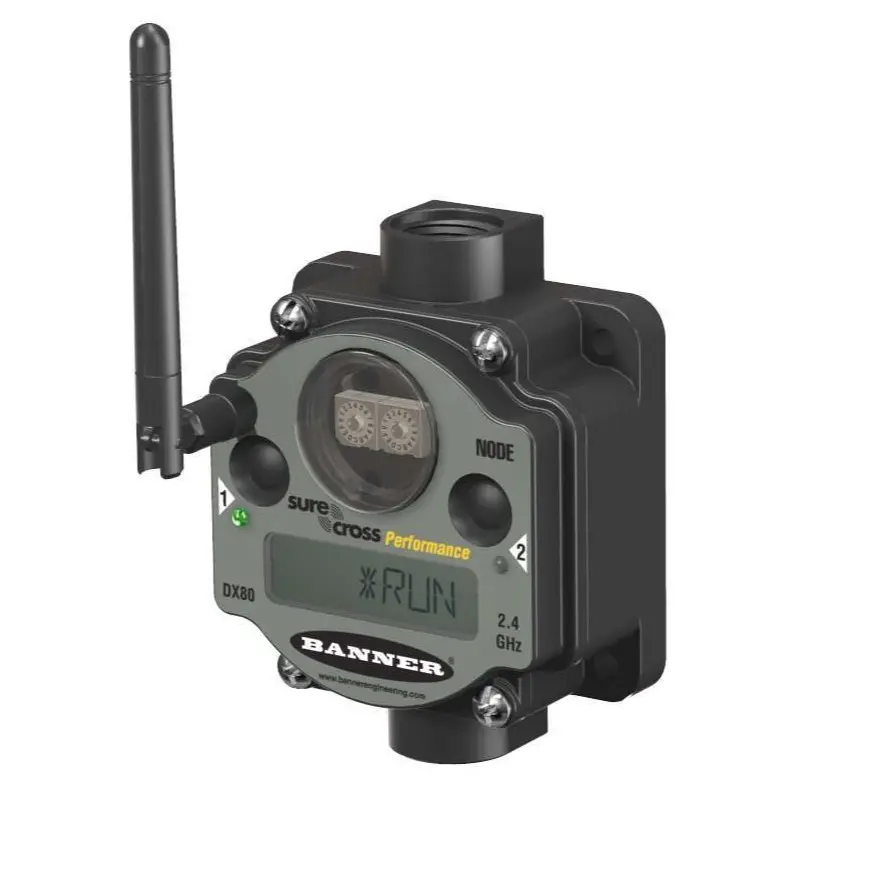

The DX80G2M6S-PM2 Gateway and DX80N2X6S-PM2 Node provide a robust wireless solution for industrial automation, offering seamless remote monitoring and control with versatile input and output configurations.
Together, the gateway and node create a reliable, flexible solution for industrial applications.
- Protection Rating: IP67, suitable for industrial environments
- Gateway Inputs: 4 selectable discrete inputs, 2 analog inputs (0-20 mA)
- Node Inputs: 4 selectable discrete inputs, 2 analog inputs (0-20 mA)
- Gateway Outputs: 4 sourcing discrete outputs, 2 analog outputs (0-20 mA)
- Node Outputs: 4 PNP discrete outputs, 2 analog outputs (0-20 mA)
- Wireless Communication: 2.4 GHz frequency with Modbus RTU over RS-485 support for seamless integration
- Response Time: Configurable, with update rates for both analog and discrete signals
- Power Supply: 10-30 V DC for both gateway and node devices
